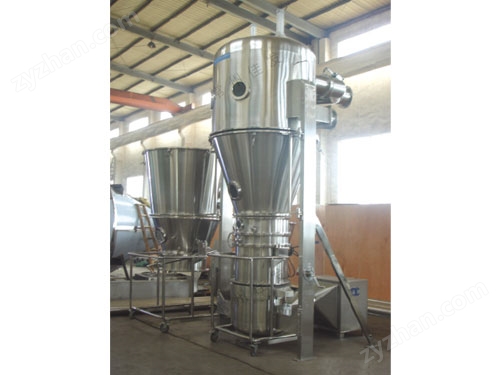

應用概述 General of applications
★粉末或者母粒在旋轉流化床內，受到環隙空氣浮力，旋轉離心力、自身重力作用，呈環周繩股狀，粘合劑或包衣液噴入料層形成真球度的丸?；蜻B續均勻的衣膜。
★Powder or seed granule in rotated fluid will undertaken the action of air flotage force in ring gap, rotating centrifugal force and gravity and appear cycle rope strain shape. Adhesive or coat liquid will be sprayed into the layer of material to form pellet with high degree of ball or continuous and uniform coating film.
設備特點 Features of equipment
★集混合，制丸，制粒，干燥為一體，減少工藝步驟及污染環節，降低勞動強度。
★設備內外表面光潔，，利于清洗，符合“GMP”要求。
★Integrating mixing, pelletizing, granulating and drying in one body, reducing the process of technique and contamination and the workload of workers.
★The surface of the equipment is neat and lubricity inside and outside. It’s free of blind corner and easy to clean and designed by GMP.
項目 ltem 規格 Specification | 1.5 | 10 | 20 | 30 | 60 | 120 | ||
原料容器容積 Container volume | L | 5 | 30 | 60 | 105 | 180 | 420 | |
投料量 Capacity | kg/批 kg/batch | 0.5-1.5 | 3-10 | 8-20 | 10-30 | 20-60 | 40-120 | |
旋轉電機功率 Power of rotating motor | kw | 0.55 | 1.5 | 4 | 5.5 | 7.5 | 11 | |
風機功率 Power of fan | kw | 4 | 5.5 | 7.5 | 15 | 18.5 | 22 | |
蒸汽 Steam | 壓強 Pressure | Mpa | 0.4-0.6 | |||||
耗量 Consumption | Kg/h | 6KW | 42 | 84 | 166 | 250 | 332 | |
壓縮空氣 Compressed air | 壓強 Pressure | Mpa | 0.6 | |||||
耗量 Consumption | m3/min | 0.3 | 0.6 | 0.6 | 1.1 | 1.8 | 2.4 | |
主機尺寸 Installation size for reference | H1(mm) | 2600 | 2250 | 2850 | 2850 | 3300 | 3500 | |
H2(mm) |
| 320 | 490 | 590 | 690 | 790 | ||
H3(mm) |
| 2050 | 2600 | 2600 | 3080 | 3280 | ||
?1(mm) | 400 | 700 | 1000 | 1200 | 1400 | 1600 | ||
?2(mm) | 180 | 180 | 280 | 280 | 280 | 315 | ||
B1(mm) | 1650 | 1160 | 1460 | 1660 | 1860 | 2060 | ||
B2(mm) |
| 1800 | 2460 | 2860 | 3260 | 3660 | ||
L(mm) |
| 1250 | 1530 | 1650 | 1650 | 1750 | ||
所有參數僅作參考，視物料情況，本公司擁有變更權利，并不另行通知。
All datas are used for reference only. According to the condition of material, our factory has the right to change but not notice, pardon!
